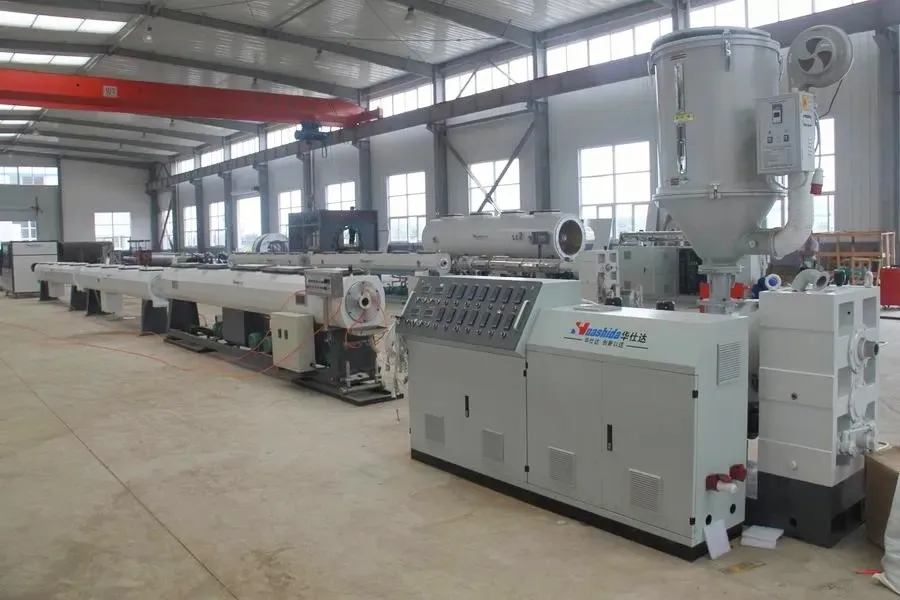

This fully automatic HDPE water/gas pipeline production line specializes in manufacturing PE80/PE100 pipes with diameters ranging from Φ20mm to 2000mm, suitable for municipal water supply, agricultural irrigation and gas transmission. Equipped with high-efficiency extruders, precision molds, water cooling systems, high-speed traction machines and intelligent cutting machines, it ensures accurate pipe dimensions, smooth surfaces and stable quality. The PLC intelligent control system realizes automated production and online inspection, featuring high production capacity, low energy consumption, convenient operation, and environmental compliance. It is an ideal solution for high-quality pipe manufacturing.

Technical specification

Technological processes
[Feeding&Drying] → [Extrusion Molding] → [Mold Shaping] → [Cooling] → [Traction and Cutting] → [Marking]

Main equipment list
-1set Vacuum loader
-1set Hopper dryer
-1set High-effeciency single screw extruder
-1set 25/25 single screw extruder for mark line
-1set Vacuum calibration table
-2/4 set Water spraying tank
-1set Hauling machine
-1set Cutting machine
-1set Stacker

Equipment detai photos
1. Single Screw Extruder




2. Die-Head



3. Vacuum forming tank



4. Water Cooling Tank




5. Haul-off Machine




6. No-Dust Planetary Cutter




7. Discharging Frame

√ The spiral die head optimizes the mixing and reduces the working temperature and pressure.

√ Exclusive cooling technology ensures the roundness of the pipe at high speeds.

√ The entire line is intelligently controlled by PLC, with parameter touch screen management.

√ Processes such as multi-layer co-extrusion help reduce manufacturing costs.
